NEX NOVA
HOSPITAL INFRASTRUCTURE
The NEX NOVA is an advanced surgical lighting solution designed to deliver bright, uniform, and reliable illumination for modern operation theatres. Engineered with efficient LED technology, it provides clear visibility across the surgical field while helping minimize unwanted shadows during medical procedures. Its precise illumination supports accurate observation of tissues and surgical areas, while adjustable brightness control allows medical professionals to manage light intensity according to different procedural requirements. The NEX NOVA is designed for smooth positioning, convenient operation, and consistent performance during long surgical procedures. Its energy-efficient LED system also supports low heat generation and dependable long-term use. Combining modern design, practical controls, excellent illumination, and durable construction, the NEX NOVA is a suitable choice for hospitals, surgical centres, clinics, and healthcare facilities looking for a professional and efficient OT lighting solution.
Easy Position Adjustment
High-Intensity LED Lighting
Clear Surgical Visibility
NEX NOVA
Advanced LED Lighting
Provides bright, clear illumination for surgical procedures with adjustable light intensity and reduced shadow formation, supporting better visibility in the operating room.
Advanced LED Illumination
Provides bright, uniform, and consistent lighting to maintain clear visibility across the surgical field during different procedures.
Effective Shadow Reduction
Advanced light distribution helps minimize unwanted shadows, providing focused and uninterrupted illumination for precise surgical work.
Precise Brightness Control
Easy-to-use brightness adjustment allows medical professionals to control light intensity according to specific surgical requirements.
Excellent Colour Visibility
High-quality LED illumination supports natural colour representation, helping medical professionals clearly observe tissues and anatomical details.
Low Heat Technology
Energy-efficient LEDs generate minimal heat, helping maintain a comfortable environment during long and demanding surgical procedures.
Smooth & Flexible Positioning
Designed for convenient movement and positioning, the NEX NOVA allows the surgical light to be adjusted smoothly for optimal illumination.

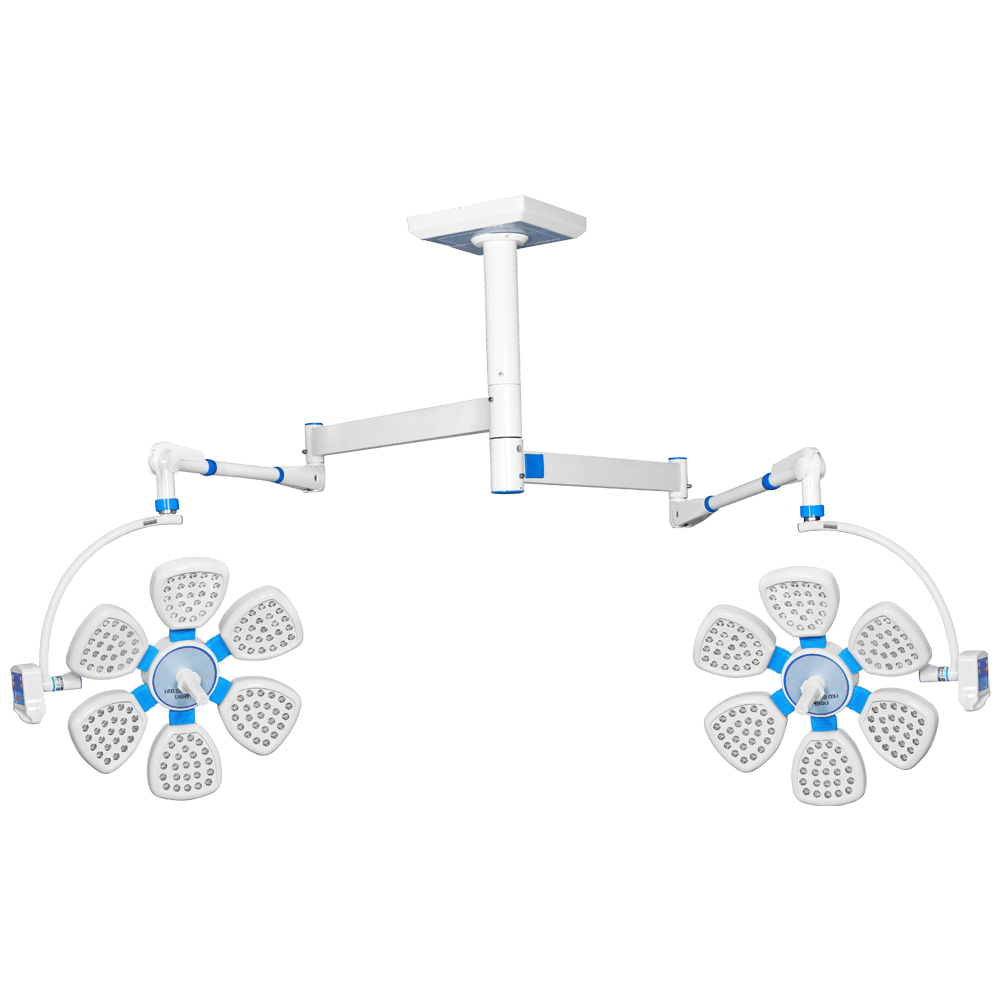

NEX NOVA
Technical Specifications
| Intensity | 2,00,000 + 2,00,000 Lux |
| Shadowless Feature | Yes |
| Number of LEDs | 144 + 144 |
| Intensity Control | 10–100 Digital Capacitive Touch |
| Fitting Options Available | Ceiling Mounted – 340° / 360° |
| Spot Diameter | 100–150 mm |
| Depth of Light Penetration | 150 mm |
| Colour Temperature | 3800–4800K |
| Colour Rendering Index | 93 Ra |
| Focusing | Adjustable |
| LED Average Life | ≥ 50,000 Hrs. |
| Diameter of Light | 700 mm + 700 mm |
| Power Supply | 220V / 50Hz AC |
| Power Consumption | 100 + 100 Watt |
| Optional Special Features | Mobile App Connectivity, External Wall Panel, Battery Backup |
Advanced Features
The NEX NOVA is designed with advanced technology to deliver powerful, uniform and reliable illumination for modern operation theatres. Its shadow-reduced lighting supports better visibility during surgical procedures, while adjustable intensity and focusing provide greater control according to different clinical requirements. The system combines smooth positioning, efficient LED performance and convenient controls for dependable everyday operation.

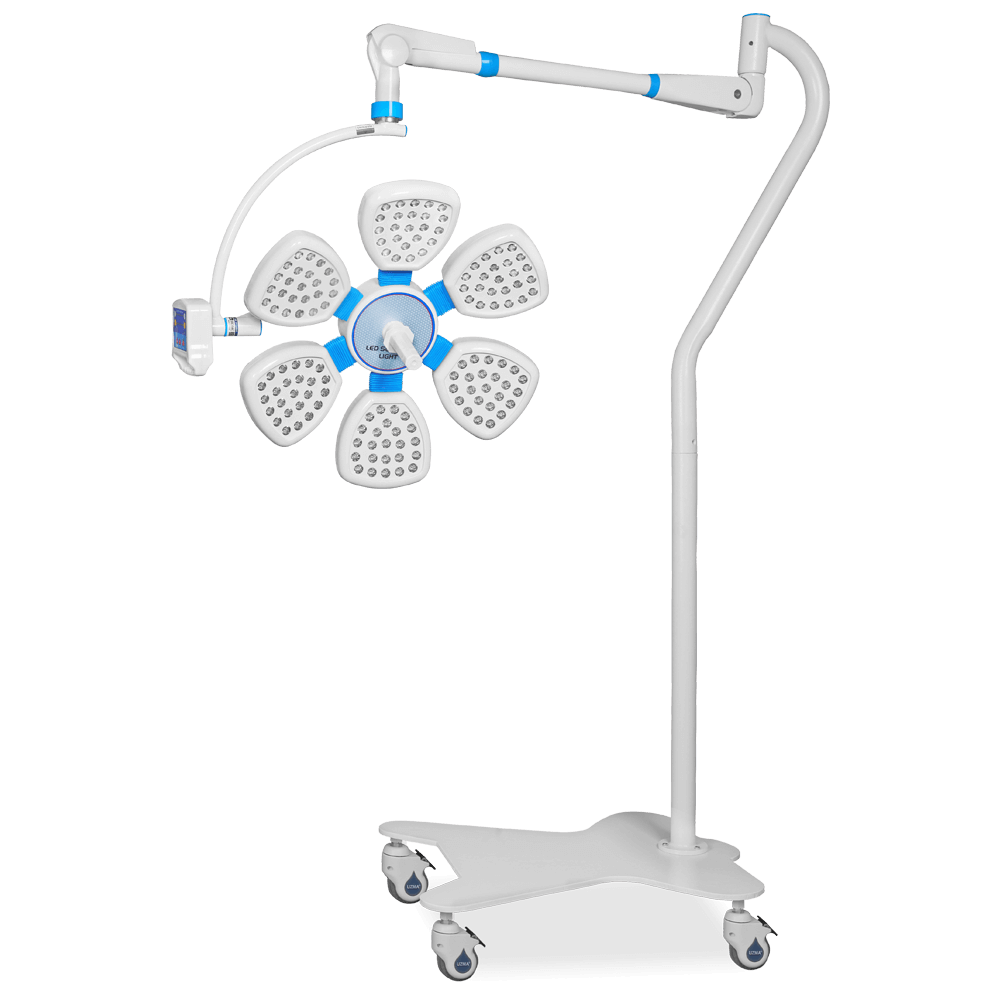

NEX NOVA
| Intensity | 2,00,000 Lux |
| Shadowless Feature | Yes |
| Numbers of LEDs | 144 (Warm + Cool White) |
| Intensity Control | 10–100 Digital Capacitive Touch (Fully Remote Controlled) |
| Fitting Options Available | Ceiling, Wall, Mobile Stand Mounted |
| Spot Diameter | 100–150 mm |
| Depth of Light Penetration | 150 mm |
| Colour Temperature | 3800–4800K |
Features
The NEX NOVA combines advanced LED technology with a modern aerodynamic design to provide clear and reliable illumination for operation theatres. Its shadowless lighting, memory function, high-quality sterilizable handle and smooth positioning system support convenient operation during different surgical procedures. The advanced lighting system delivers consistent illumination with effective light penetration, helping maintain better visibility throughout demanding clinical procedures.
VENUS 5+5
| Intensity | 1,80,000 + 1,80,000 Lux |
| Shadowless Feature | Yes |
| Numbers of LEDs | 120 + 120 (Warm + Cool White) |
| Intensity Control | 10–100 Digital Capacitive Touch (Fully Remote Controlled) |
| Fitting Options Available | Ceiling Mounted – 340 Degrees / 360 Degrees |
| Spot Diameter | 100–150 mm |
| Depth of Light Penetration | 150 mm |
| Colour Temperature | 3800–4800K |
| Colour Rendering Index | 93 Ra |
| Focusing | Adjustable |
| LED Average Life | > 50,000 Hrs. |
| Diameter of Light | 700 mm + 700 mm |
| Power Supply | 220V / 50Hz AC |
| Power Consumption | 100 + 100 Watt |
| Optional Special Features | Mobile App Connectivity, External Wall Panel, Battery Backup |
Features
The VENUS 5+5 features a fully aerodynamic design developed for smooth laminar flow and clear visibility during long surgical procedures. Its advanced shadowless illumination, memory function and high-quality sterilizable handle support convenient operation in modern surgical environments. Polycarbonate construction, fast disinfection capability and advanced light penetration help provide reliable and consistent performance during deep cavity surgeries.
VENUS 5+5
| Intensity | 1,80,000 + 1,80,000 Lux |
| Shadowless Feature | Yes |
| Numbers of LEDs | 120 + 120 (Warm + Cool White) |
| Intensity Control | 10–100 Digital Capacitive Touch (Fully Remote Controlled) |
| Fitting Options Available | Ceiling Mounted – 340 Degrees / 360 Degrees |
| Spot Diameter | 100–150 mm |
| Depth of Light Penetration | 150 mm |
| Colour Temperature | 3800–4800K |
| Colour Rendering Index | 93 Ra |
| Focusing | Adjustable |
| LED Average Life | > 50,000 Hrs. |
| Diameter of Light | 700 mm + 700 mm |
| Power Supply | 220V / 50Hz AC |
| Power Consumption | 100 + 100 Watt |
| Optional Special Features | Mobile App Connectivity, External Wall Panel, Battery Backup |
Features
The VENUS 5+5 features a fully aerodynamic design developed for smooth laminar flow and clear visibility during long surgical procedures. Its advanced shadowless illumination, memory function and high-quality sterilizable handle support convenient operation in modern surgical environments. Polycarbonate construction, fast disinfection capability and advanced light penetration help provide reliable and consistent performance during deep cavity surgeries.

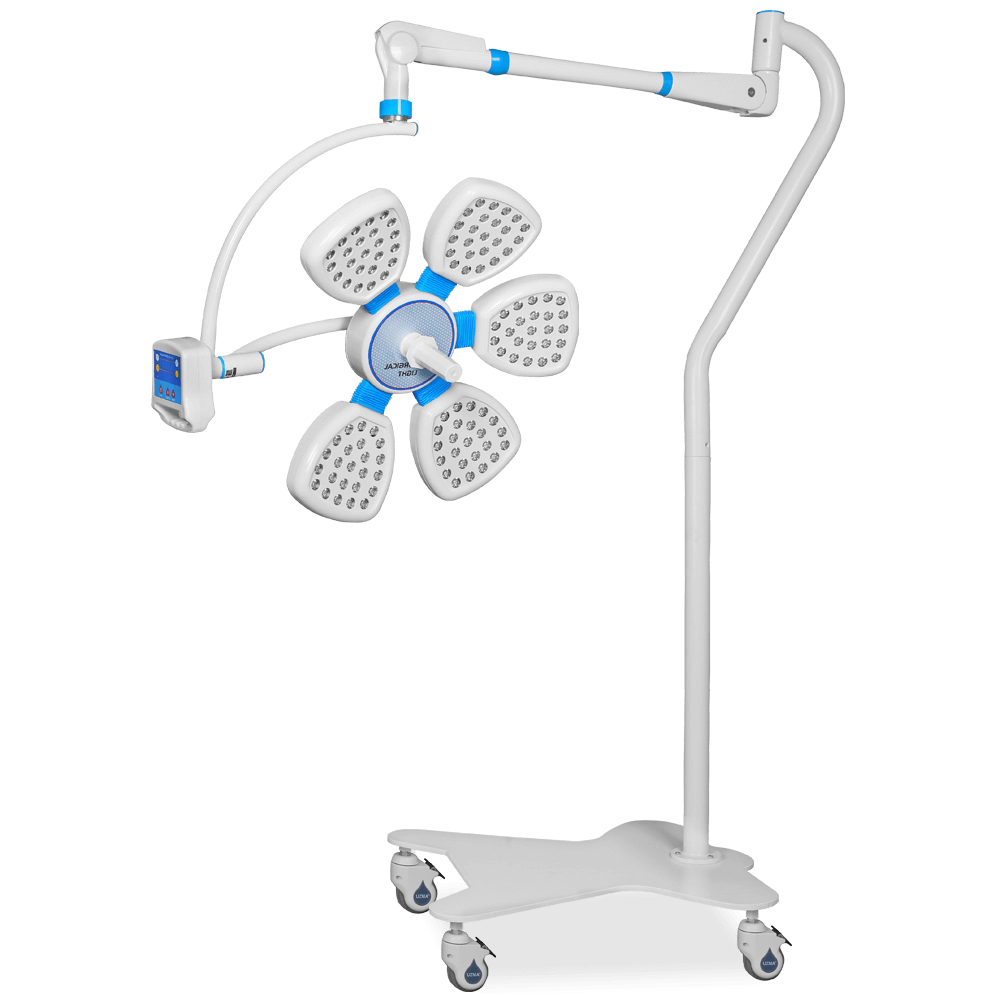

VENUS 5
| Intensity | 1,80,000 Lux |
| Shadowless Feature | Yes |
| Numbers of LEDs | 120 (Warm + Cool White) |
| Intensity Control | 10–100 Digital Capacitive Touch (Fully Remote Controlled) |
| Fitting Options Available | Ceiling, Wall, Mobile Stand Mounted |
| Spot Diameter | 100–150 mm |
| Depth of Light Penetration | 150 mm |
| Colour Temperature | 3800–4800K |
Features
The VENUS 5 features a fully aerodynamic design developed for smooth laminar flow and clear visibility during long surgical procedures. Its advanced shadowless illumination, memory function and high-quality sterilizable handle support convenient operation in modern operation theatres. Polycarbonate construction, fast disinfection capability and advanced light penetration help deliver reliable illumination for deep cavity surgeries.

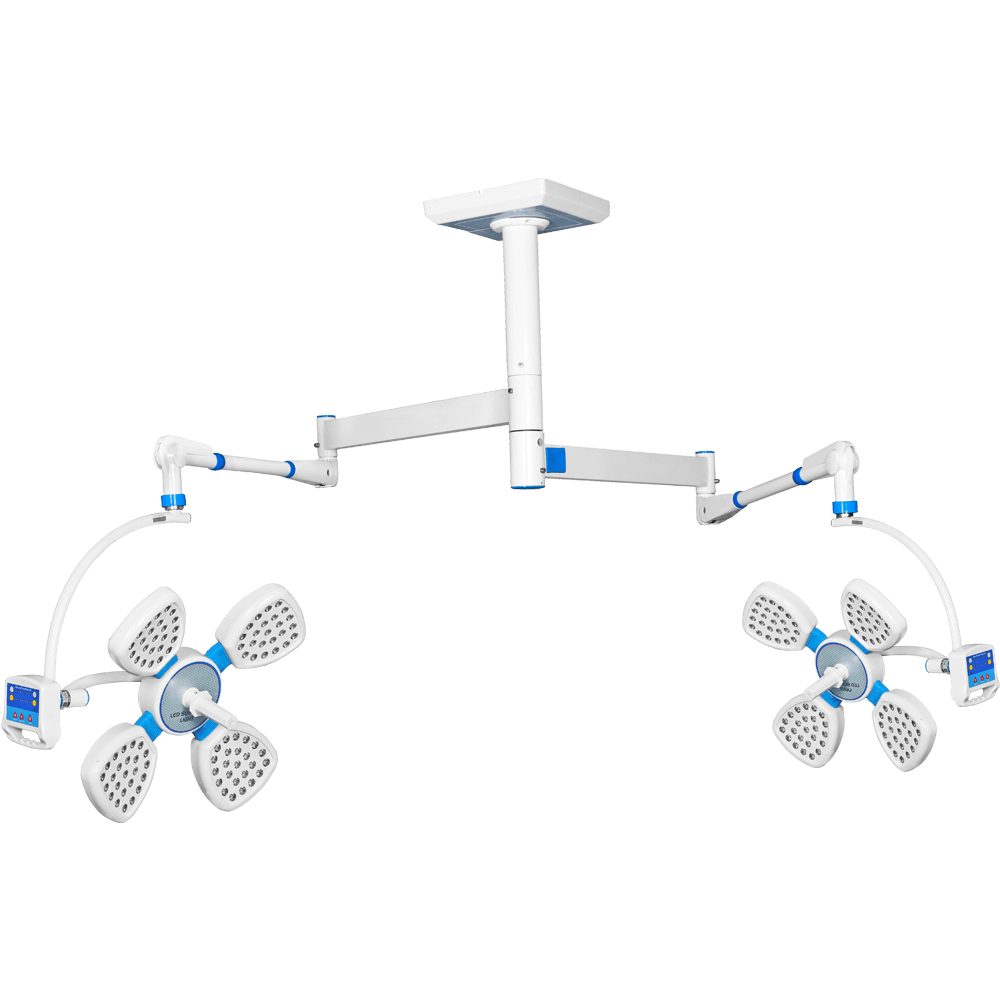

VENUS 4+4
| Intensity | 1,60,000 + 1,60,000 Lux |
| Shadowless Feature | Yes |
| Numbers of LEDs | 96 + 96 (Warm + Cool White) |
| Intensity Control | 10–100 Digital Capacitive Touch (Fully Remote Controlled) |
| Fitting Options Available | Ceiling Mounted – 340 Degrees / 360 Degrees |
| Spot Diameter | 100–150 mm |
| Depth of Light Penetration | 150 mm |
| Colour Temperature | 3800–4800K |
| Colour Rendering Index | 93 Ra |
| Focusing | Adjustable |
| LED Average Life | > 50,000 Hrs. |
| Diameter of Light | 650 mm + 650 mm |
| Power Supply | 220V / 50Hz AC |
| Power Consumption | 100 + 100 Watt |
| Optional Special Features | Mobile App Connectivity, External Wall Panel, Battery Backup |
Features
The VENUS 4+4 features a fully aerodynamic design developed for smooth laminar flow and clear visibility during long surgical procedures. Advanced shadowless illumination, memory function and a high-quality sterilizable handle support convenient operation in modern operation theatres. Its durable polycarbonate construction, fast disinfection capability and effective light penetration help provide reliable illumination during deep cavity surgeries.

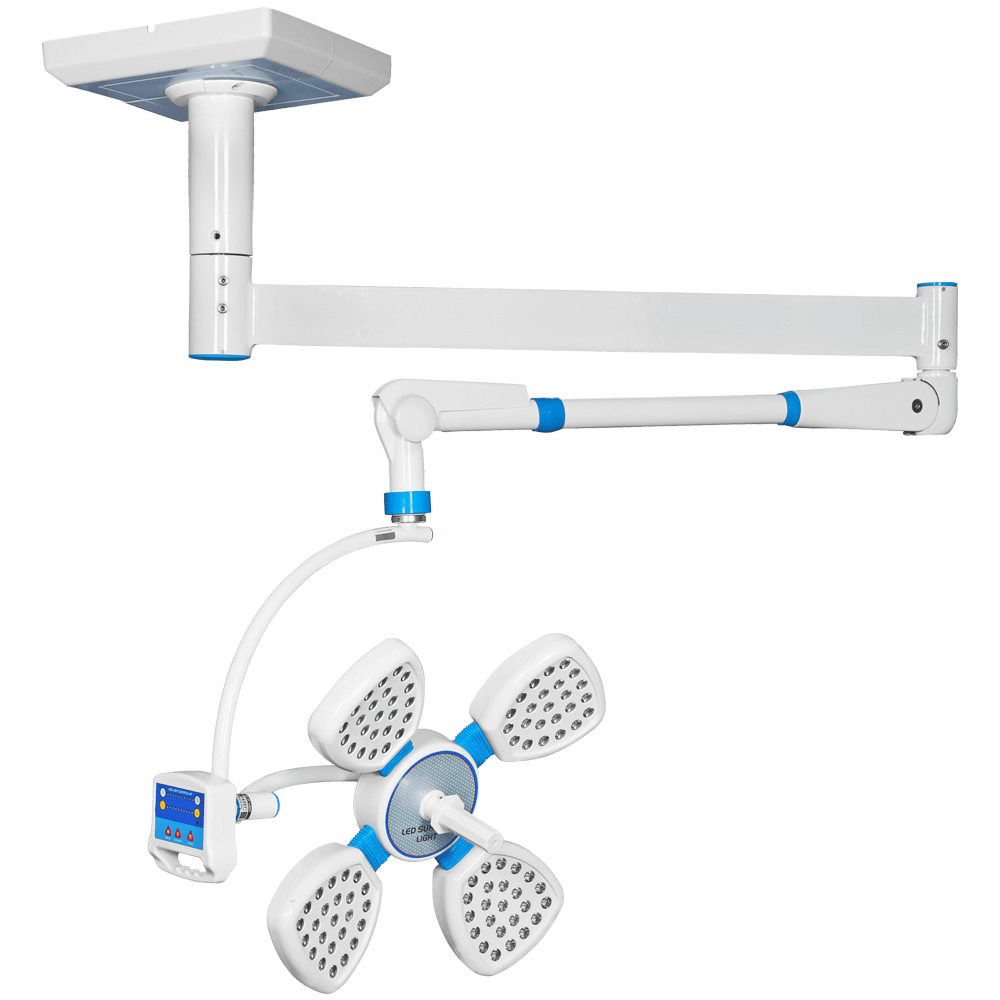

VENUS 4
| Intensity | 1,60,000 Lux |
| Shadowless Feature | Yes |
| Numbers of LEDs | 96 (Warm + Cool White) |
| Intensity Control | 10–100 Digital Capacitive Touch (Fully Remote Controlled) |
| Fitting Options Available | Ceiling Mounted – 340 Degrees / 360 Degrees |
| Spot Diameter | 100–150 mm |
| Depth of Light Penetration | 150 mm |
| Colour Temperature | 3800–4800K |
Features
The VENUS 4 features a fully aerodynamic design developed for smooth laminar flow and clear visibility during long surgical procedures. Its advanced shadowless illumination, memory function and high-quality sterilizable handle support convenient and reliable operation. Durable polycarbonate construction, fast disinfection capability and effective light penetration make the system suitable for modern operation theatres and demanding surgical procedures.

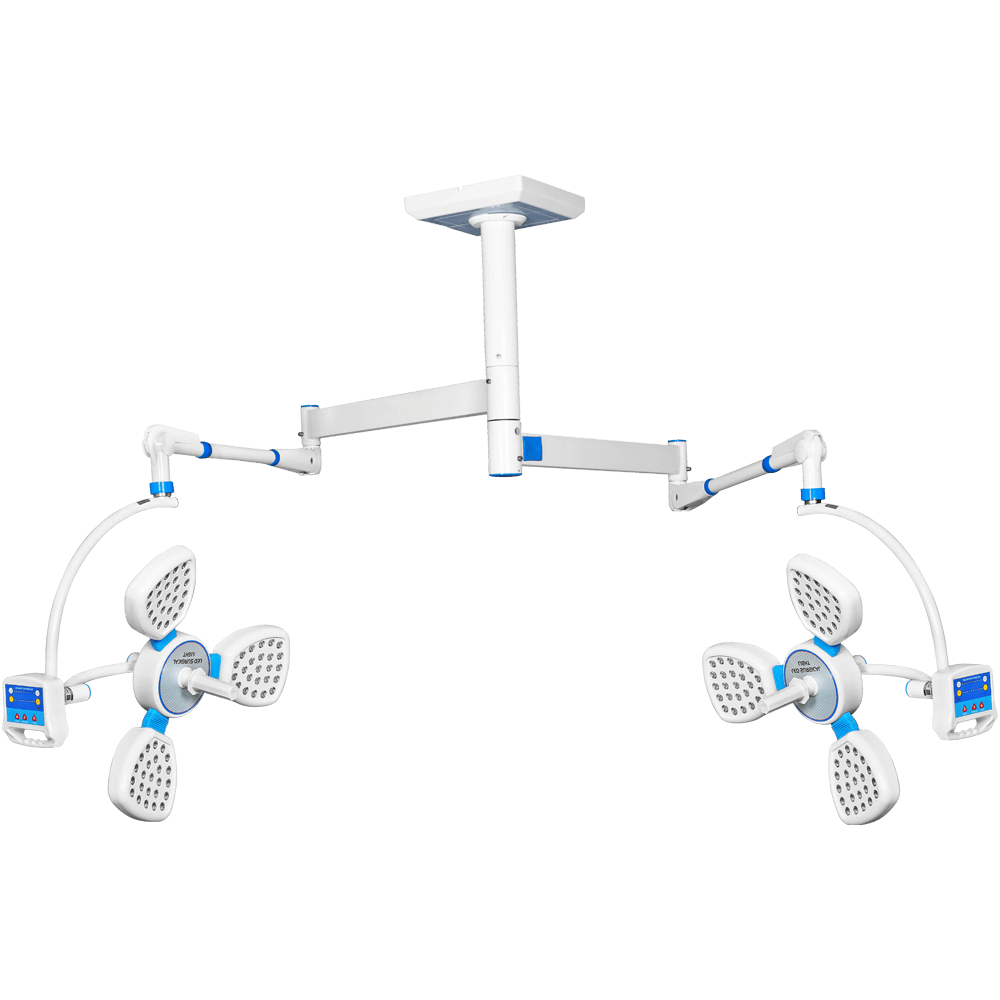

VENUS 3+3
| Intensity | 1,40,000 + 1,40,000 Lux |
| Shadowless Feature | Yes |
| Numbers of LEDs | 72 + 72 (Warm + Cool White) |
| Intensity Control | 10–100 Digital Capacitive Touch (Fully Remote Controlled) |
| Fitting Options Available | Ceiling Mounted – 340 Degrees / 360 Degrees |
| Spot Diameter | 100–150 mm |
| Depth of Light Penetration | 150 mm |
| Colour Temperature | 3800–4800K |
| Colour Rendering Index | 93 Ra |
| Focusing | Adjustable |
| LED Average Life | > 50,000 Hrs. |
| Diameter of Light | 600 mm + 600 mm |
| Power Supply | 220V / 50Hz AC |
| Power Consumption | 80 + 80 Watt |
| Optional Special Features | Mobile App Connectivity, External Wall Panel, Battery Backup |
Features
The VENUS 3+3 features a fully aerodynamic design developed for smooth laminar flow and clear visibility during long surgical procedures. Its advanced shadowless illumination, memory function and high-quality sterilizable handle support convenient operation in modern operation theatres. Durable polycarbonate construction, fast disinfection capability and effective light penetration help provide consistent illumination for deep cavity surgeries.

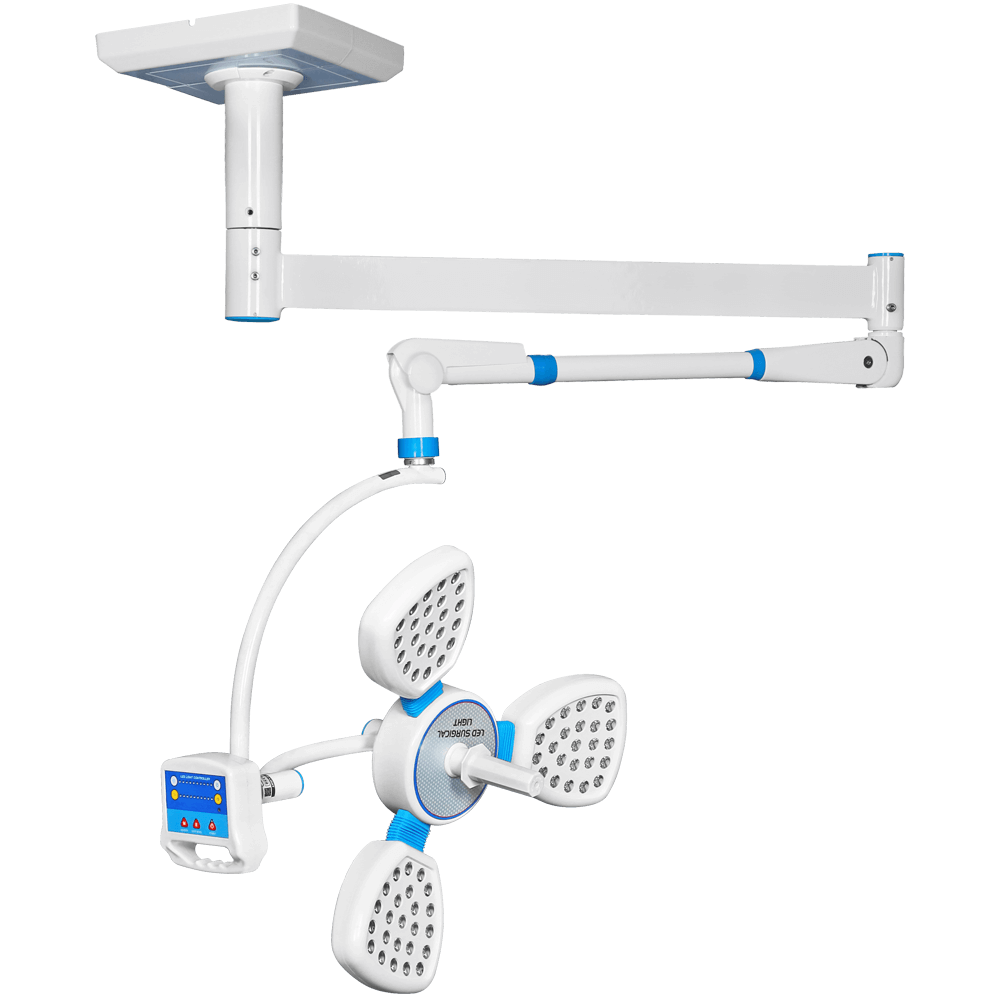

VENUS 3
| Intensity | 1,40,000 Lux |
| Shadowless Feature | Yes |
| Numbers of LEDs | 72 (Warm + Cool White) |
| Intensity Control | 10–100 Digital Capacitive Touch (Fully Remote Controlled) |
| Fitting Options Available | Ceiling, Wall, Mobile Mounted |
| Spot Diameter | 100–150 mm |
| Depth of Light Penetration | 150 mm |
| Colour Temperature | 3800–4800K |
Features
The VENUS 3 is a shadowless LED OT light designed to provide reliable and clear illumination for modern surgical environments. Its high-quality sterilizable handle is suitable for autoclave use, while the durable fire-resistant construction supports dependable operation. The system features fast disinfection capability, efficient heat ventilation and effective light penetration to support consistent visibility during different surgical procedures.
